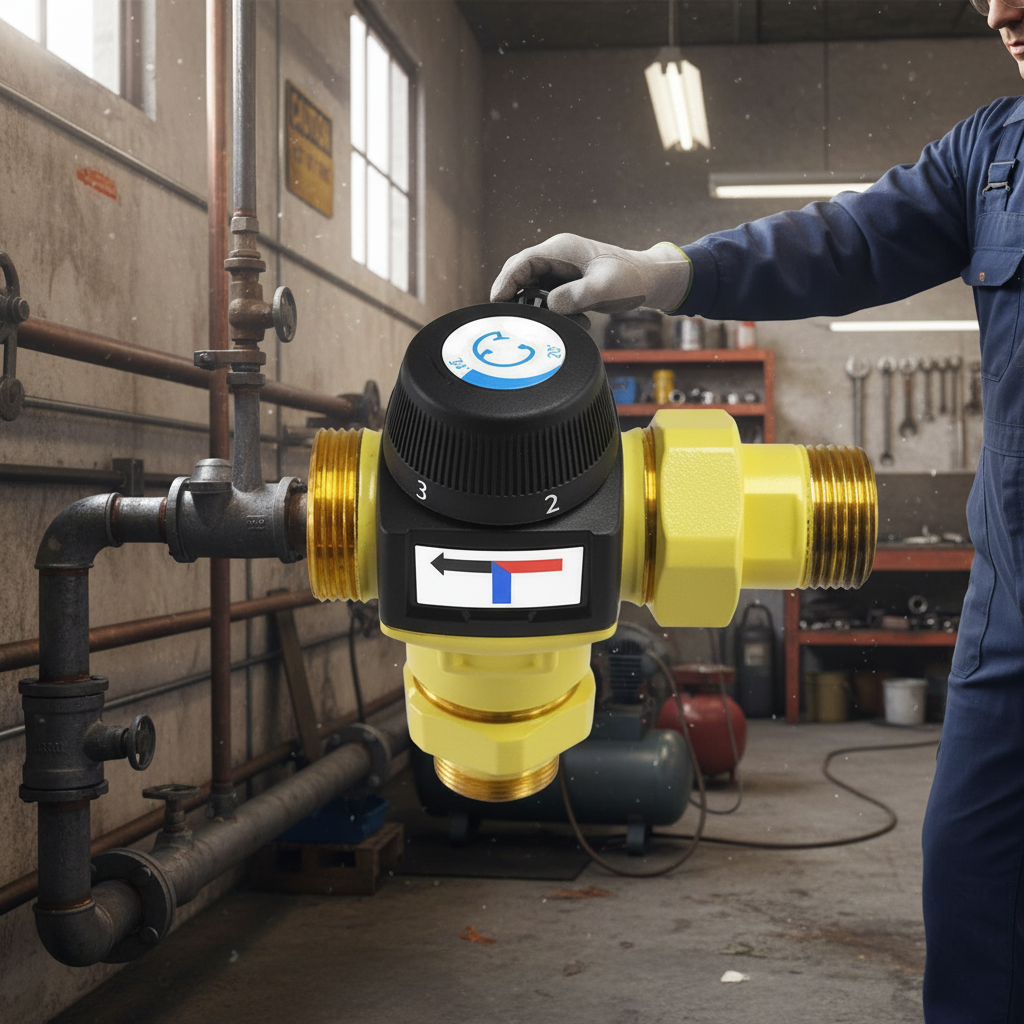

Thermostatic Safety Valve for Tepid Water Mixing

Short Description:

This thermostatic safety valve is designed for mixing hot and cold water to provide tepid water. It is commonly used in industrial settings to ensure safe water temperatures.

Features:

• Adjustable temperature range from 20°C to 43°C
• Minimum flow rate of 122lpm at 2 bar
• By-pass system for cold water supply failure
• Shuts off hot water supply to prevent scalding if cold water fails


Specifications

• Connection: 1½? Male with optional kit including two 1? male adapters with check valves on the inlets.
• Water inlet pressure (hot & cold): Recommended 2 bar with a maximum of 8 bar - please notify us prior to ordering if your water pressure is below 1.5 bar.
• Hot water supply temperature: Optimum 50-70°C (Maximum 100°C)
• Cold water supply temperature: 5-10°C (Maximum 23°C)
• Fully closed temperature: 35°C

Benefits:

• Ensures safe water temperatures to prevent scalding
• Reliable operation even during supply failures
• Easy installation with adaptable connections

Use Cases:

• Industrial water supply systems
• Healthcare facilities
• Laboratories requiring controlled water temperatures

FAQ:

Q: What is the recommended water inlet pressure?
A: The recommended water inlet pressure is 2 bar, with a maximum of 8 bar.

Q: What temperatures can this valve handle?
A: It can handle hot water temperatures of up to 100°C and cold water temperatures of up to 23°C.
